Kennametal

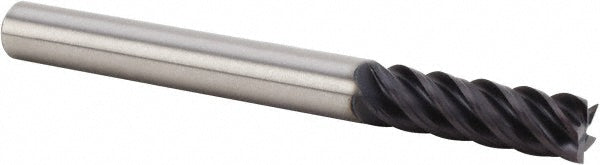

1/4" 5; 5; 5; 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 5059458

MFR# 5059458Series HARVI UGDE

$130.37List $167.21 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5; 5; 5; 5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5059458 is a 1/4 5; 5; 5; 5-flute Solid Carbide (KC643M) corner radius & corner chamfer end mill with a AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron. 1-1/4 length of cut, 3 overall length. Series HARVI UGDE.

Specifications

CentercuttingNo

ChipbreakerNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Coating finishAlTiN

Coolant throughNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle43

Length of cut in1-1/4

Length typeRegular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular

Material gradeKC643M

Mill diameter in1/4

Number of flutes5; 5; 5; 5

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron

Shank diameter in1/4

Shank typeStraight

Single or double endSingle; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single

Variable helixNo

Variable indexNo
