SGS
0.2500" 3-Flute Solid Carbide Tapered End Mill - SGS 32438
MFR# 32438Series 24B
$137.83List $176.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated
Description

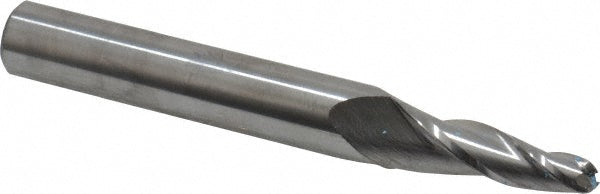

The SGS 32438 is a 0.2500 3-flute Solid Carbide (Micrograin) tapered end mill. 1-1/4 length of cut, 4 overall length. Series 24B.
Specifications
CentercuttingYes
Coating finishUncoated
End mill materialSolid Carbide
End shapeBall
Flute directionRight Hand
Flute typeSpiral
Helix angle28
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter0.2500
Nose radius in1/8
Number of flutes3
Overall length in4
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0004 in
Small end diameter in1/4
Small end diameter tolerance+0.0000/-0.0010 in
Taper angle per side5.00
