Kennametal

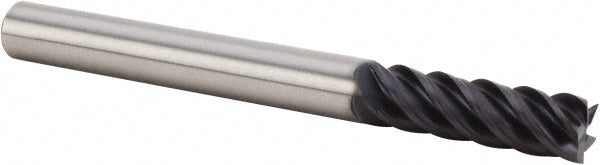

3/8" 5; 5; 5; 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 5059626

MFR# 5059626Series HARVI UGDE

$174.58List $223.92 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5; 5; 5; 5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5059626 is a 3/8 5; 5; 5; 5-flute Solid Carbide (KC643M) corner radius & corner chamfer end mill with a AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN; AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron, superalloys & titanium, hard material, steel, stainless steel, cast iron. 1-7/8 length of cut, 4 overall length. Series HARVI UGDE.

Specifications

CentercuttingNo

ChipbreakerNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Coating finishAlTiN

Coolant throughNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle43

Length of cut in1-7/8

Length typeRegular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular

Material gradeKC643M

Mill diameter in3/8

Number of flutes5; 5; 5; 5

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron

Shank diameter in3/8

Shank typeStraight

Single or double endSingle; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single

Variable helixNo

Variable indexNo
