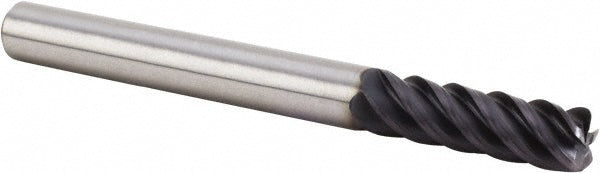

3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059627

Kennametal

3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059627

MFR# 5059627Series UGDE

$174.58List $223.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 5059627 is a 3/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-7/8 length of cut, 4 overall length. Series UGDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withHC-HSK Form A
Helix styleHigh
Length of cut in1-7/8
Length typeExtra Long
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes5
Overall length in4
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in1-7/8
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
