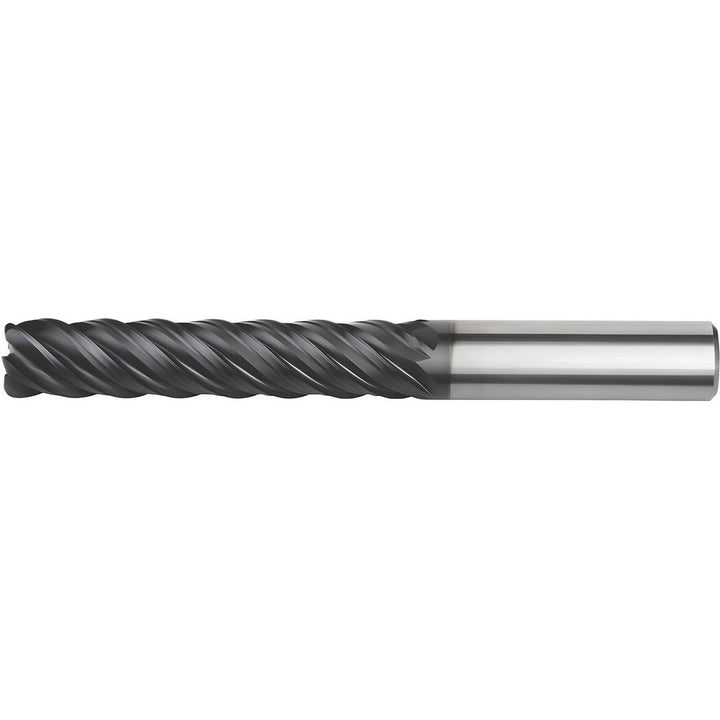

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059709

Kennametal

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059709

MFR# 5059709Series UGDE

$495.58List $635.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 5059709 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3-1/8 length of cut, 6 overall length. Series UGDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC-HSK Form A
Helix styleHigh
Length of cut in3-1/8
Length typeExtra Long
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in5/8
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes5
Overall length in6
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in3-1/8
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
