Kennametal

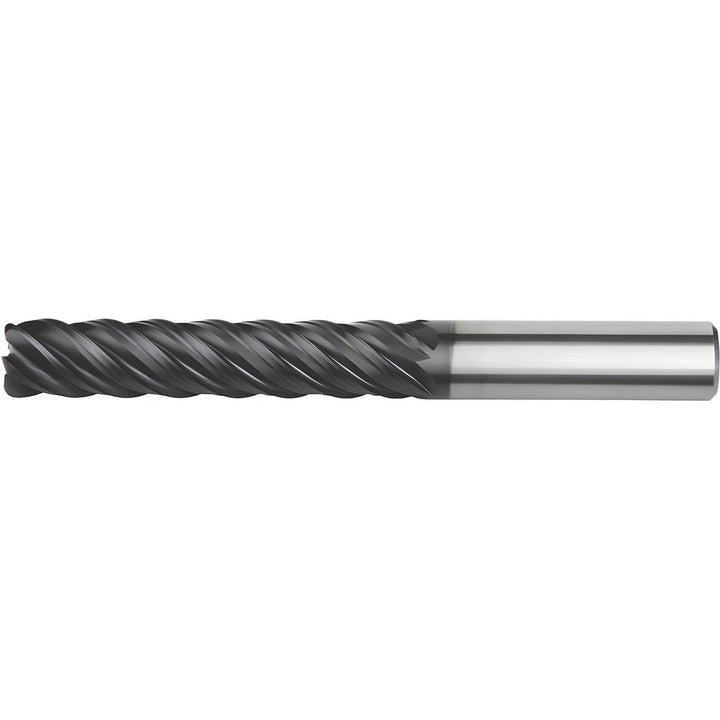

1" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5060123

MFR# 5060123Series UGDE

$1,368.62List $1,755.32 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5060123 is a 1 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5 length of cut, 7-1/2 overall length. Series UGDE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD; ER Single Angle Standard Collets

Helix styleHigh

Length of cut in5

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes5

Overall length in7-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in5

Shank diameter in1

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
