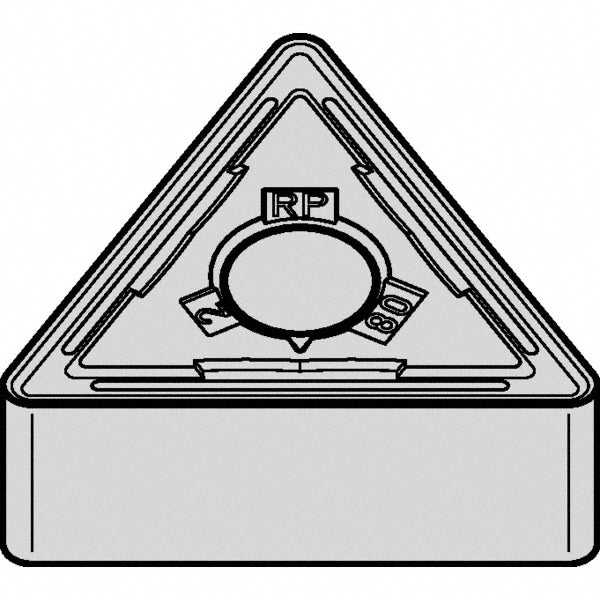

T - Triangle 3/4" IC Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062148

Kennametal

T - Triangle 3/4" IC Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062148

MFR# 5062148ISO/ANSI# TNMG330924Series KENLOC

$77.73List $94.88 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 5062148 is a carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG666
Ansi size code666
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.3125
Included angle60
Industry standard numberTNMG666RP
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2992
Insert materialCarbide
Insert shapeT - Triangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso insert codeTNMG330924
Iso size code330924
Length range0.7000 - 10.0000
Manufacturers catalog number5062148
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.4326
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.2992
Wiper edgeNo
