Kennametal

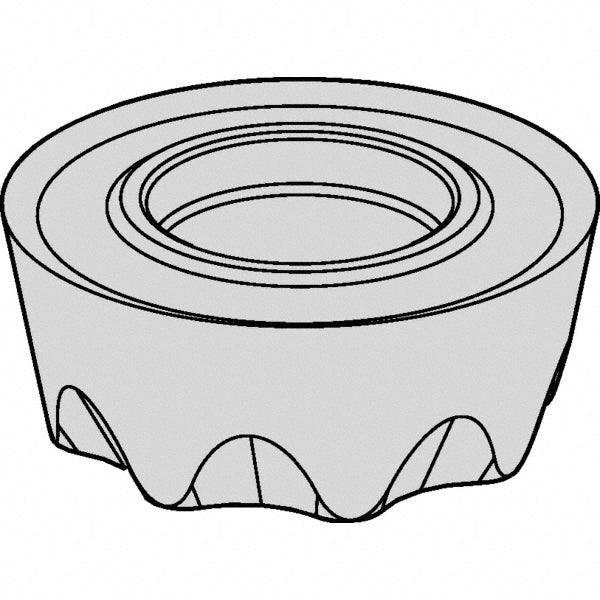

RPET1605M0SGEJ Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 5063704
MFR# 5063704ISO/ANSI# RPET1605M0SGEJCat# RPET1605M0SGEJSeries RPET
$30.79List $37.58
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5063704 is a RPET1605M0SGEJ solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRPET1605M0SGEJ
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityKSRM
Cutting edge styleHoned T-Land
Included angle degree360
Inscribed circle0.6300
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1605
Insert styleRPET
Iso codeRPET1605M0SGEJ
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberRPET1605M0SGEJ
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.6300
