Kennametal

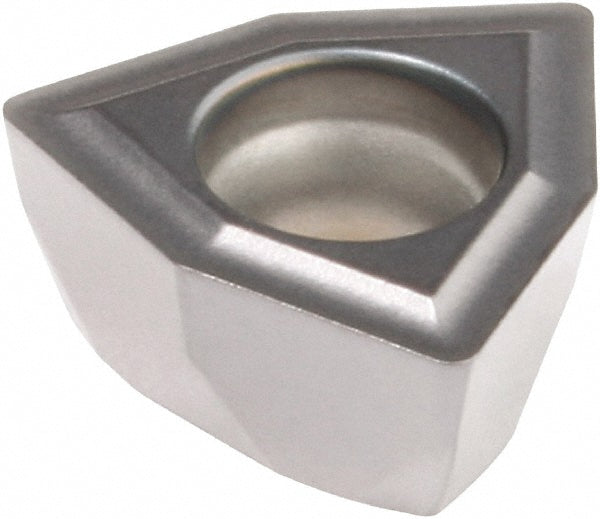

0.5906" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5066191
MFR# 5066191
$37.27List $45.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description
The Kennametal 5066191 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerGD
Coating finishTiN
Coating processPVD
Corner radius0.0335
Hole diameter0.2165in
Included angle degree84
Inscribed circle0.5906
Insert handNeutral
Insert materialCarbide
Insert size090508
Insert styleDFT
Length0.3906
Manufacturer gradeKCU40
Relief angle8
ShapeTrigon
Thickness0.2067
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
