Kennametal

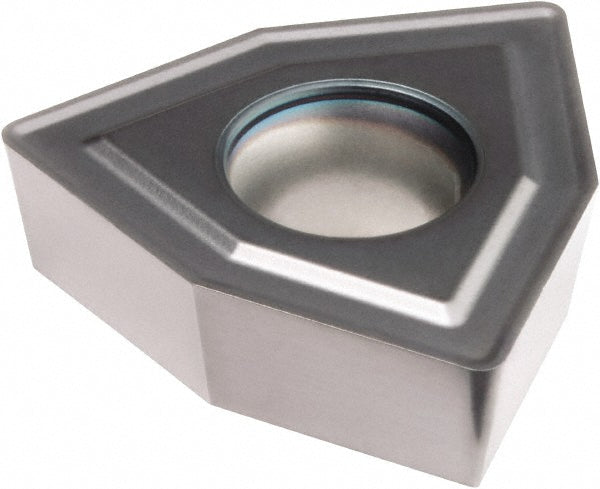

0.5906" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5066222
MFR# 5066222
$38.61List $47.13
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description
The Kennametal 5066222 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerHP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165in
Included angle degree84
Inscribed circle0.5906
Insert handNeutral
Insert materialCarbide
Insert size090508
Insert styleDFT
Length0.3906
Manufacturer gradeKCU40
Relief angle9
ShapeTrigon
Thickness0.2067
