Kennametal
0.4724" IC Solid Carbide Insert, Grade KCU25, AlTiN - Kennametal 5067479
MFR# 5067479
$32.15List $39.24
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingAlTiN
Description

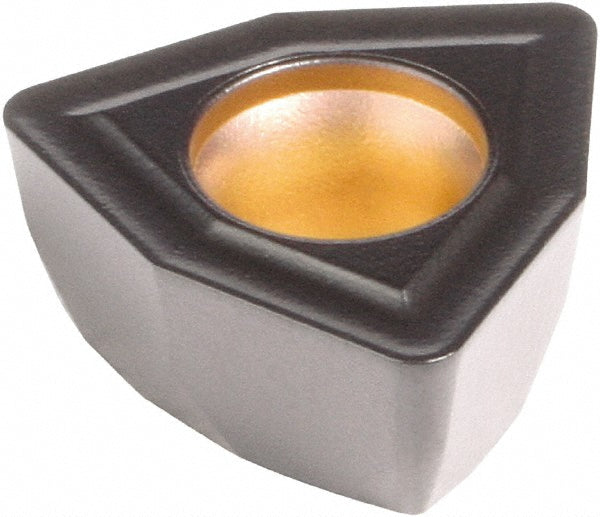

The Kennametal 5067479 is a solid carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerGD
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting directionNeutral
Hole diameter0.1732
Included angle degree84
Inscribed circle0.4724
Insert materialSolid Carbide
Insert size070408
Insert styleDFT
Length0.3126
Manufacturer gradeKCU25
Relief angle8
ShapeTrigon
Thickness in3/16
