Kennametal

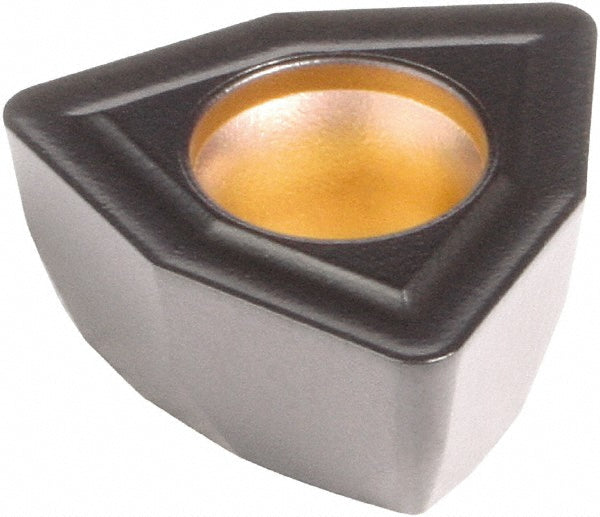

0.5906" IC Solid Carbide Insert, Grade KCU25, AlTiN - Kennametal 5067485
MFR# 5067485
$37.27List $45.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 5067485 is a solid carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerGD
Coating finishAlTiN
Coating processPVD
Corner radius0.0335
Cutting directionNeutral
Hole diameter0.2165
Included angle degree84
Inscribed circle0.5906
Insert materialSolid Carbide
Insert size090508
Insert styleDFT
Length0.3906
Manufacturer gradeKCU25
Relief angle8
ShapeTrigon
Thickness0.2067
