Kennametal

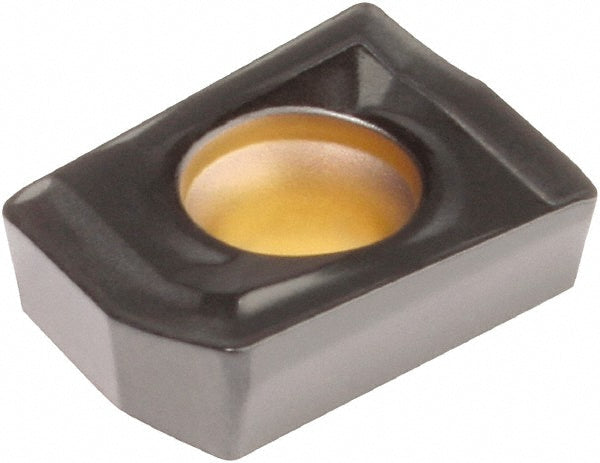

0.5906" IC Carbide Insert, Grade KCPK10, TiCN - Kennametal 5068325
MFR# 5068325
$37.27List $45.49
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCPK10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5068325 is a carbide indexable insert, grade KCPK10, TiCN coated.
Specifications
ChipbreakerHP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2165in
Included angle degree84
Inscribed circle0.5906
Insert handNeutral
Insert materialCarbide
Insert size090508
Insert styleDFT
Length0.3906
Manufacturer gradeKCPK10
Relief angle8
ShapeTrigon
Thickness0.2067
