Kennametal

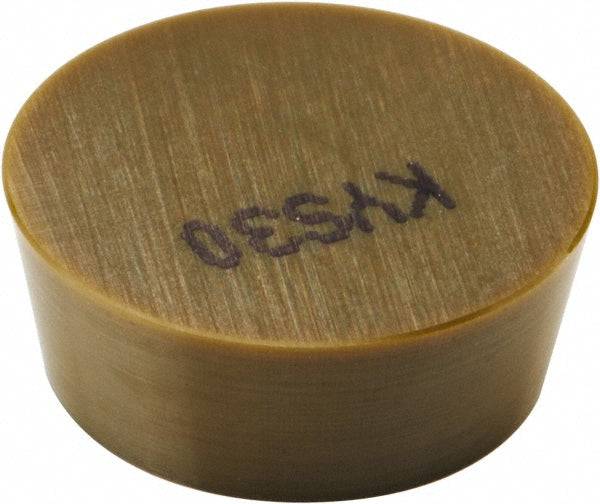

RPGN090300T01020 Ceramic Insert, Grade KYS30 - Kennametal 5090285
MFR# 5090285ISO/ANSI# RPGN090300T01020Cat# RPGN090300T01020Series RPGN
$19.32List $23.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeKYS30
MaterialCeramic
Description
The Kennametal 5090285 is a RPGN090300T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi codeRPG32T0420
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityKIPR-RP
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialCeramic
Insert shapeRound
Insert size3
Insert size code32
Insert styleRPGN
Iso codeRPGN090300T01020
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberRPGN090300T01020
Manufacturer gradeKYS30
Material applicationSuperalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
