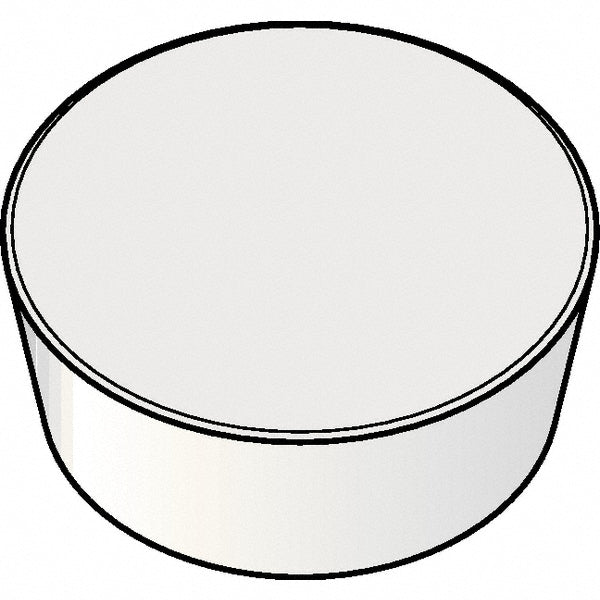

RPGN120400E Ceramic Insert, Grade KYS30 - Kennametal 5090286
MFR# 5090286ISO/ANSI# RPGN120400ECat# RPGN120400ESeries RPGN
$27.91List $34.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeKYS30
MaterialCeramic
Description
The Kennametal 5090286 is a RPGN120400E ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi codeRPG43E
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityKIPR-RP; KSSR-RPGN
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodWedge
Insert materialCeramic
Insert shapeRound
Insert size4
Insert size code43
Insert styleRPGN
Iso codeRPGN120400E
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRPGN120400E
Manufacturer gradeKYS30
Material applicationSuperalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle20
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
