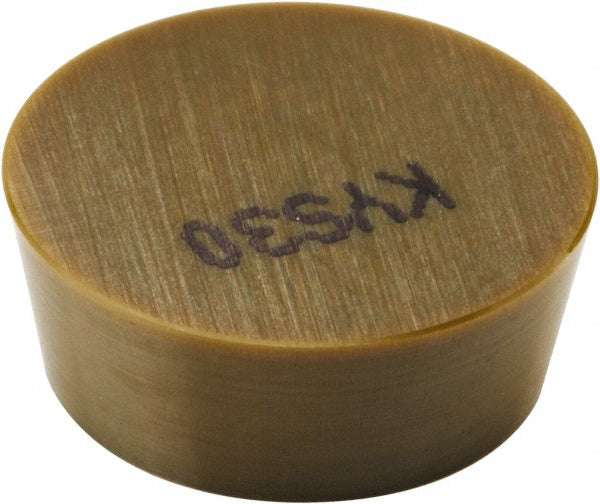

RPGN120400T01020 Ceramic Insert, Grade KYS30 - Kennametal 5090287
MFR# 5090287ISO/ANSI# RPGN120400T01020Cat# RPGN120400T01020Series RPGN
$25.73List $31.40
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeKYS30
MaterialCeramic
Description
The Kennametal 5090287 is a RPGN120400T01020 ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi codeRPG43T0420
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityKIPR-RP; KSSR-RPGN
Cutting edge styleT-Land
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialCeramic
Insert shapeRound
Insert size4
Insert size code43
Insert styleRPGN
Iso codeRPGN120400T01020
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRPGN120400T01020
Manufacturer gradeKYS30
Material applicationSuperalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
