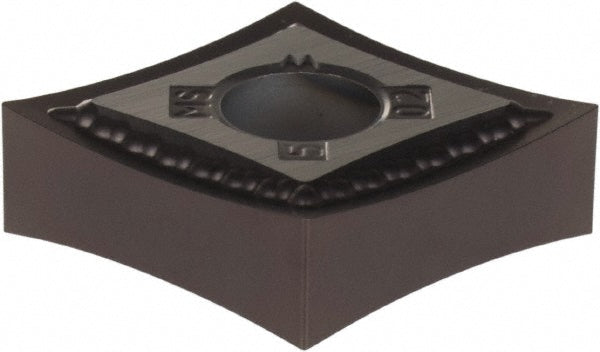

Diamond 1/2" IC Carbide Insert, Grade KCU10, TiAlN - Kennametal 5090494

Kennametal

Diamond 1/2" IC Carbide Insert, Grade KCU10, TiAlN - Kennametal 5090494

MFR# 5090494ISO/ANSI# CNMG4305MSSeries KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 5090494 is a carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerMS
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNMG4305MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond
Insert size code4305
Insert styleCNMG
Insert thickness in3/16
Length range0.5000 - 0.6000
Manufacturers catalog number5090494
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
