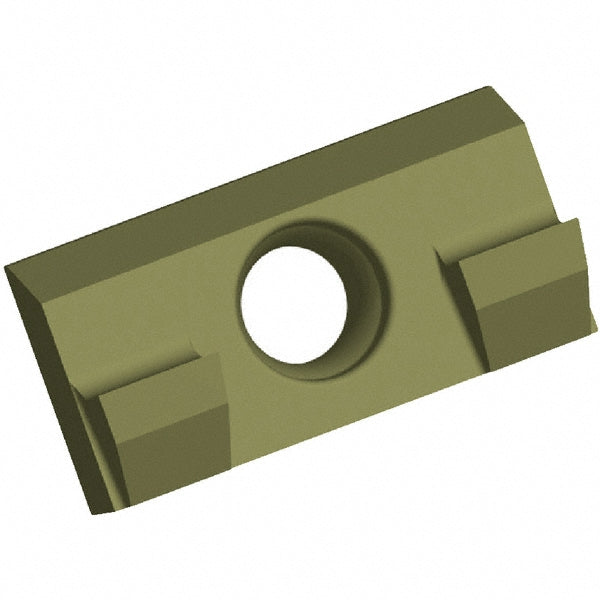

KGIP0125N0189GD Solid Carbide Insert, Grade KCU45, AlTiN - Kennametal 5134141

Kennametal

KGIP0125N0189GD Solid Carbide Insert, Grade KCU45, AlTiN - Kennametal 5134141

MFR# 5134141ISO/ANSI# KGIP0125N0189GDCat# KGIP0125N0189GDSeries KGIP

$63.60List $77.63 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeIrregular
GradeKCU45
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 5134141 is a KGIP0125N0189GD solid carbide indexable insert, grade KCU45, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeKGIP0125N0189GD
Chip breakerGD
Coating finishAlTiN
Coating processPVD
Cutter series compatibilityKGEM
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size01
Insert size code0125
Insert styleKGIP
Iso codeKGIP0125N0189GD
Length0.5040
Length range0.3200 to 0.4000
Manufacturers catalog numberKGIP0125N0189GD
Manufacturer gradeKCU45
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.0520
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle4
Relief angle3.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1110
Thickness range0.1000 to 0.1250
Width in1/8
