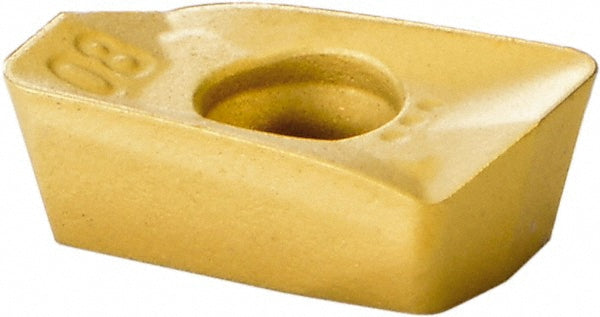

EDPT070308PDSRGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 5169173
MFR# 5169173ISO/ANSI# EDPT070308PDSRGECat# EDPT070308PDSRGESeries EDPT
$23.53List $28.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5169173 is a EDPT070308PDSRGE solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeEP0708SGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-7
Cutting edge styleChamfered; Honed
Hole diameter0.0866
Included angle degree70
Inscribed circle0.1850
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0708
Insert styleEDPT
Iso codeEDPT070308PDSRGE
Length0.3220
Length range0.3200 to 0.4000
Manufacturers catalog numberEDPT070308PDSRGE
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1102
Thickness range0.1000 to 0.1250
Width0.1846
