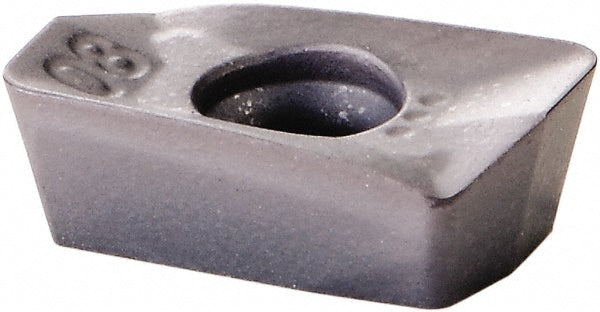

EDPT070308PDSRGE Solid Carbide Insert, Grade KCPK30, TiN - Kennametal 5169175
MFR# 5169175ISO/ANSI# EDPT070308PDSRGECat# EDPT070308PDSRGESeries EDPT
$24.44List $29.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKCPK30
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5169175 is a EDPT070308PDSRGE solid carbide indexable insert, grade KCPK30, TiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeEP0708SGE
Chip breakerGE
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityMill 1-7
Cutting edge styleChamfered; Honed
Hole diameter0.0866
Included angle degree70
Inscribed circle0.1850
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code0708
Insert styleEDPT
Iso codeEDPT070308PDSRGE
Length0.3220
Length range0.3200 to 0.4000
Manufacturers catalog numberEDPT070308PDSRGE
Manufacturer gradeKCPK30
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1; C5; C6
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1102
Thickness range0.1000 to 0.1250
Width0.1846
