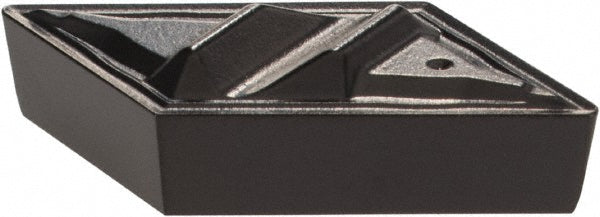

KCGR110304L08FP Carbide Insert, Grade KCM25, TiN - Kennametal 5324775

Kennametal

KCGR110304L08FP Carbide Insert, Grade KCM25, TiN - Kennametal 5324775

MFR# 5324775ISO/ANSI# KCGR110304L08FPSeries Top Notch

$26.18List $31.96 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKCM25
MaterialCarbide
CoatingTiN

Description

The Kennametal 5324775 is a KCGR110304L08FP carbide indexable insert, grade KCM25, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processMTCVD
Corner radius0.0156
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert holding methodClamp
Insert length0.4566
Insert materialCarbide
Insert size code51
Insert styleNPGR
Iso codeKCGR110304L08FP
Manufacturer gradeKCM25
Material gradeC1; C2
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle8
StandardsANSI; ISO
Width0.249
