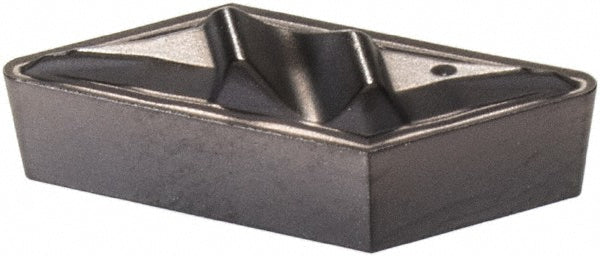

KCGR110308R08FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 5324794

Kennametal

KCGR110308R08FP Carbide Insert, Grade KCU10, TiAlN - Kennametal 5324794

MFR# 5324794ISO/ANSI# KCGR110308R08FPSeries Top Notch

$26.44List $32.27 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 5324794 is a KCGR110308R08FP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Coating finishTiAlN
Coating processPVD
Corner radius0.0313
Included angle55
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodClamp
Insert length0.4580
Insert materialCarbide
Insert size code52
Insert styleNPGR
Iso codeKCGR110308R08FP
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle15
Relief angle8
StandardsANSI; ISO
Width in1/4
