Kennametal

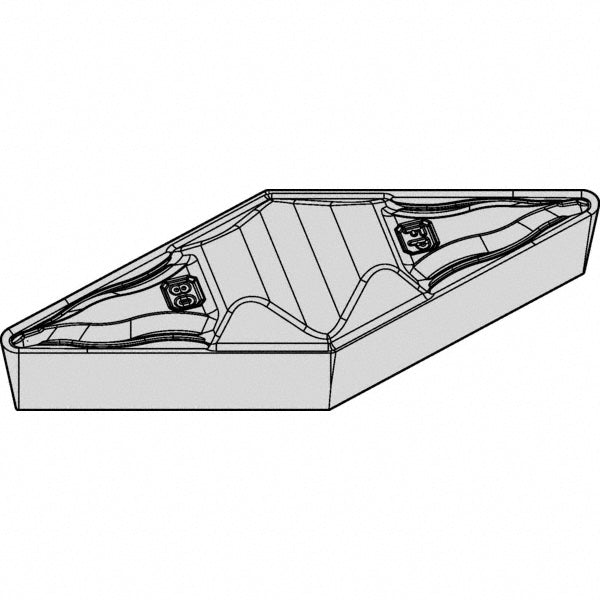

VCGR160402FP Carbide Insert, Grade KCP10, TiCN - Kennametal 5327919
MFR# 5327919ISO/ANSI# VCGR160402Series Top Notch
$38.71List $47.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5327919 is a VCGR160402FP carbide indexable insert, grade KCP10, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVCGR3305
Ansi size code3305
Chip breakerFP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Industry standard numberVCGR3305FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3305
Insert styleVCGR
Insert thickness in3/16
Iso codeVCGR160402FP
Iso insert codeVCGR160402
Iso size code160402
Length range0.7000 - 10.0000
Manufacturers catalog number5327919
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0600
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
