Kennametal

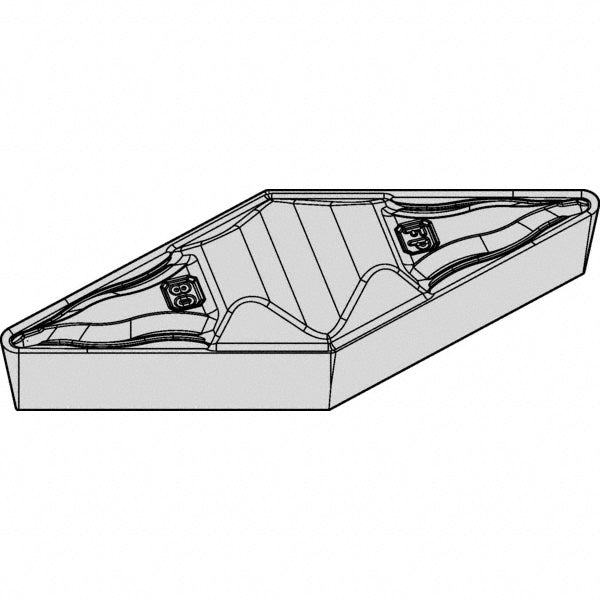

VCGR160404FP Carbide Insert, Grade KCP10, TiCN - Kennametal 5327936
MFR# 5327936ISO/ANSI# VPGR160404Series Top Notch
$31.90List $38.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5327936 is a VCGR160404FP carbide indexable insert, grade KCP10, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVPGR331
Ansi size code331
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Industry standard numberVPGR331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVPGR
Insert thickness in3/16
Iso codeVCGR160404FP
Iso insert codeVPGR160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number5327936
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0600
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
