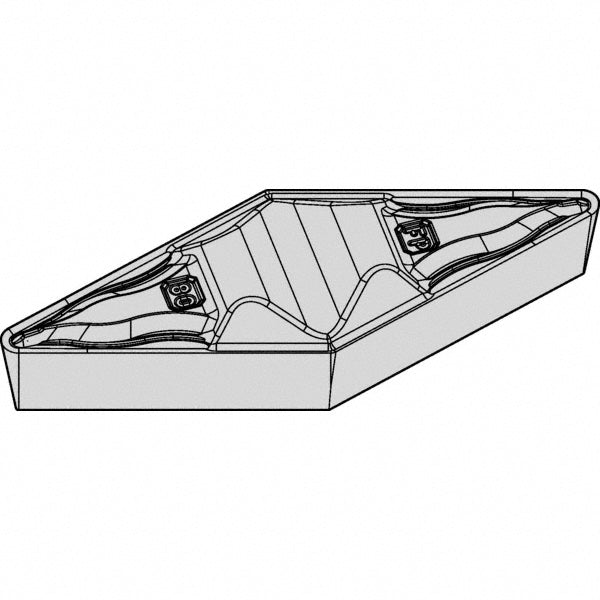

VCGR160412FP Carbide Insert, Grade KCP25, TiCN - Kennametal 5327949
MFR# 5327949ISO/ANSI# VPGR160412Series Top Notch
$38.71List $47.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5327949 is a VCGR160412FP carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVPGR333
Ansi size code333
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Industry standard numberVPGR333FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code333
Insert styleVPGR
Insert thickness in3/16
Iso codeVCGR160412FP
Iso insert codeVPGR160412
Iso size code160412
Length range0.7000 - 10.0000
Manufacturers catalog number5327949
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0600
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
