CCGW09T304S01015MT PCBN Insert, Grade KBH20, TiN - Kennametal 5330135

Kennametal

CCGW09T304S01015MT PCBN Insert, Grade KBH20, TiN - Kennametal 5330135

MFR# 5330135ISO/ANSI# CCGW09T304Series Screw-On

$107.08List $128.40 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKBH20
MaterialPCBN
CoatingTiN

Description

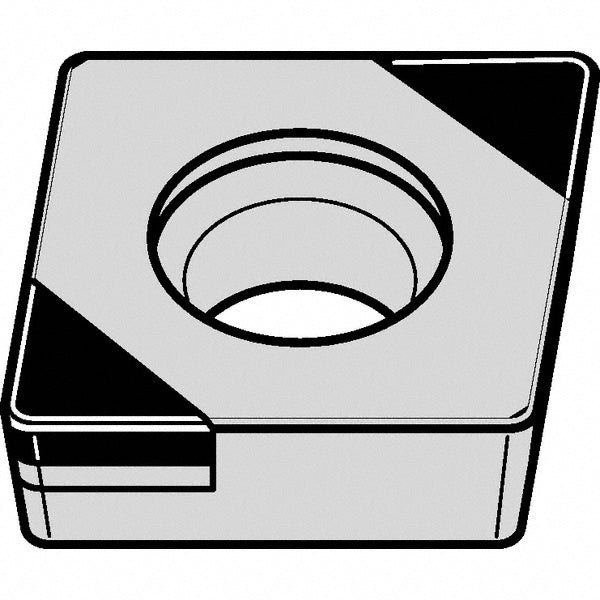

The Kennametal 5330135 is a CCGW09T304S01015MT pcbn indexable insert, grade KBH20, TiN coated. Suited for hard material.

Specifications

Ansi insert codeCCGW3251
Ansi size code3251
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCGW3251S0415MT
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3251
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW09T304S01015MT
Iso insert codeCCGW09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number5330135
Manufacturer gradeKBH20
Material gradeH15; H25
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
