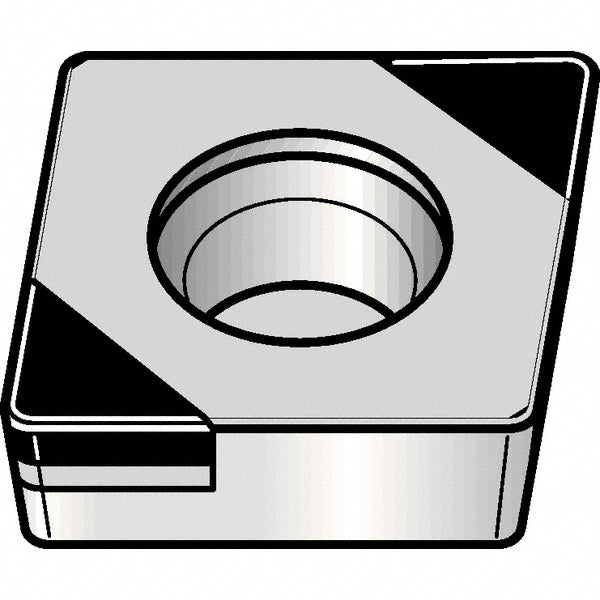

CCGM09T308S01325MTCB1 PCBN Insert, Grade KBH20, TiN - Kennametal 5348585

Kennametal

CCGM09T308S01325MTCB1 PCBN Insert, Grade KBH20, TiN - Kennametal 5348585

MFR# 5348585ISO/ANSI# CCGM09T308Series Screw-On

$135.13List $162.03 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKBH20
MaterialPCBN
CoatingTiN

Description

The Kennametal 5348585 is a CCGM09T308S01325MTCB1 pcbn indexable insert, grade KBH20, TiN coated. Suited for hard material.

Specifications

Ansi insert codeCCGM3252
Ansi size code3252
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCGM3252S0525MTCB1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3252
Insert styleCCGM
Insert thickness in5/32
Iso codeCCGM09T308S01325MTCB1
Iso insert codeCCGM09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog number5348585
Manufacturer gradeKBH20
Material gradeH15; H25
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
