Kennametal

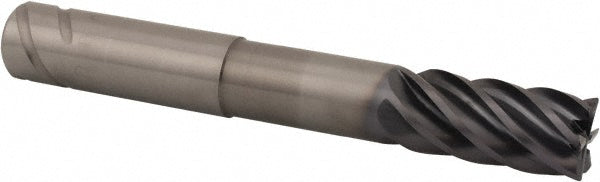

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5351898

MFR# 5351898Series UJDE

$863.31List $1,107.23 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5351898 is a 3/4 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 1-1/2 length of cut, 5-1/2 overall length. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; Hydraulic Chuck Standard Line Inch KM63XMZ

Helix styleHigh

Length of cut in1-1/2

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance+0.000000/-0.002000 in

Neck diameter0.7050

Number of flutes6

Overall length in5-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Reach length in3-1/4

Shank diameter in3/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeSafe-Lock

Single or double endSingle

Variable helixNo

Variable indexNo
