Kennametal

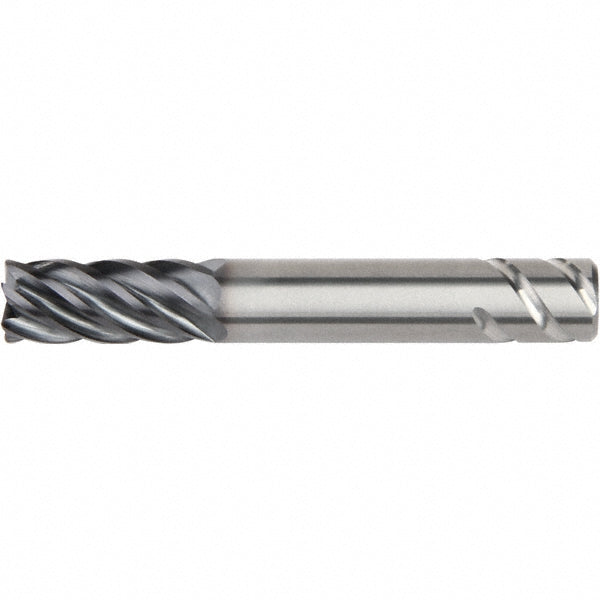

1-1/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5351940

MFR# 5351940Series UJDE

$1,202.21List $1,541.88 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1-1/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 5351940 is a 1-1/4 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 2-1/4 length of cut, 5 overall length. Series UJDE.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A; HC-HSK Form A; Hydraulic Chuck Standard Line Inch KM63XMZ; HC-CV Form AD; HC-CV Form AD; Hydraulic Chuck Standard Line

Helix styleHigh

Length of cut in2-1/4

Length typeLong

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in1-1/4

Mill diameter tolerance+0.000000/-0.002000 in

Number of flutes6

Overall length in5

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in1-1/4

Shank diameter tolerance+0.00000/-0.00051 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
