Kennametal

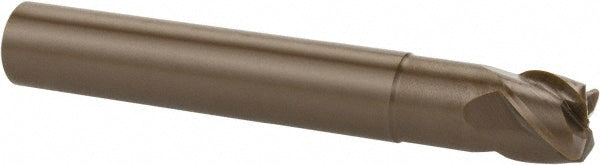

3/8" 4-Flute Ceramic Corner Radius End Mill, SiAlON - Kennametal 5352356

MFR# 5352356Series EADE

$322.56List $380.60 Save 15%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialCeramic

CoatingSiAlON

Description

The Kennametal 5352356 is a 3/8 4-flute Ceramic corner radius end mill with a SiAlON finish for longer tool life. Suited for superalloys & titanium. 9/32 length of cut, 2-1/2 overall length. Series EADE.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishSiAlON

Coolant throughNo

Corner radius0.0469

Cutting directionRight Hand

End mill materialCeramic

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A

Helix styleHigh

Length of cut in9/32

Length typeLong

Material applicationSuperalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance-0.009800/-0.001850 in

Neck diameter0.3600

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSuperalloys & Titanium

Reach length in3/4

Shank diameter in3/8

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
