Kennametal

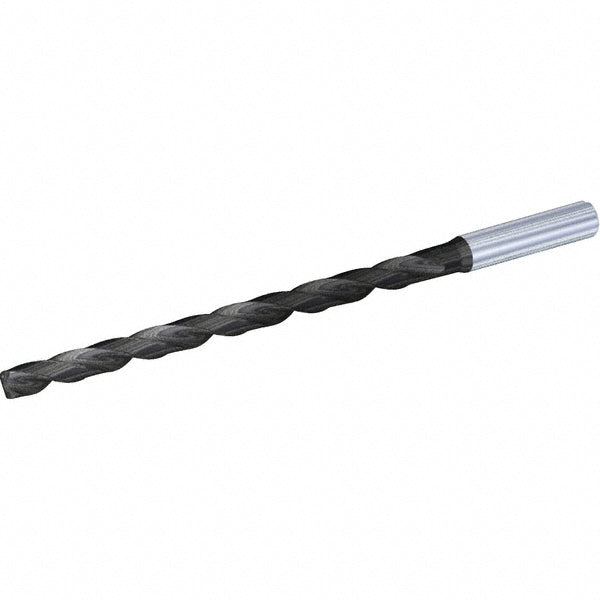

0.2402" Solid Carbide Drill Bit, TiAlN, 135° point - Kennametal 5377582
MFR# 5377582Series B269
$433.43List $555.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Kennametal 5377582 is a 0.2402" Solid Carbide drill bit with a TiAlN finish, 135° point. Series B269.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.2402
Drill point angle135
Drill point length (mm)1.14
Flute by diameter ratio12xD
Flute length (mm)97.00
Flute typeSpiral
Material gradeKCPK15
Maximum drilling depth (mm)82.00
Number of flutes2
Overall length (mm)139.00
Point typeStandard
Shank diameter (mm)8.00
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
