Kennametal

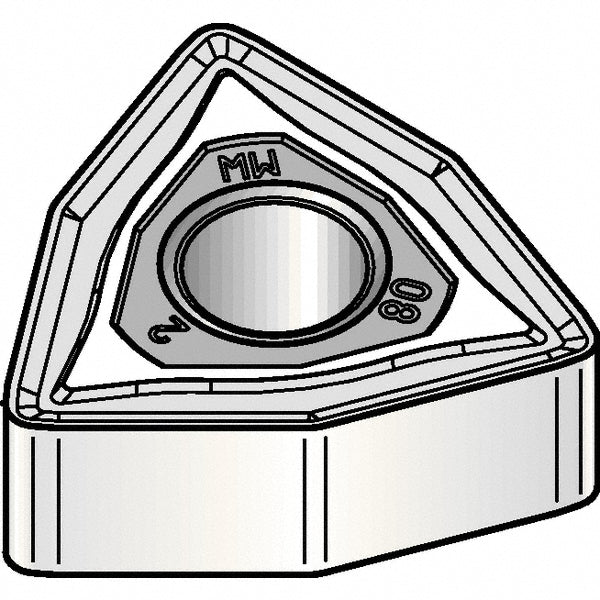

WNMG080408MW Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387612
MFR# 5387612ISO/ANSI# WNMG080402Series KENLOC
$21.19List $25.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387612 is a WNMG080408MW carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerMW
Chip breaker operationWiper - Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberWNMG432MW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408MW
Iso insert codeWNMG080402
Iso size code080402
Length range0.6500 - 0.7000
Manufacturers catalog number5387612
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeYes
