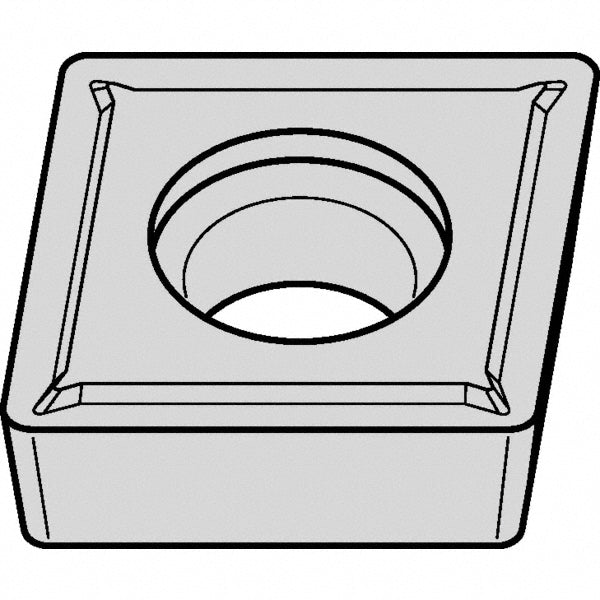

CCMT32.51 Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387627

Kennametal

CCMT32.51 Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387627

MFR# 5387627ISO/ANSI# CCMT3251LFSeries Screw-On

$29.73List $36.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKCP25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5387627 is a CCMT32.51 carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3251
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.51
Length range0.3000 - 0.4000
Manufacturers catalog number5387627
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0900
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
