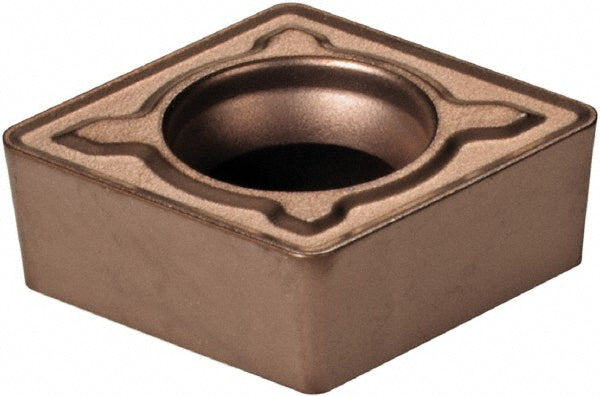

CCMT32.52 Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387629

Kennametal

CCMT32.52 Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387629

MFR# 5387629ISO/ANSI# CCMT3252MFSeries Screw-On

$24.27List $29.63 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25B
MaterialCarbide
CoatingTiCN

Description

The Kennametal 5387629 is a CCMT32.52 carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.

Specifications

Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1732
Included angle80
Industry standard numberCCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.52
Length range0.3000 - 0.4000
Manufacturers catalog number5387629
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0900
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
