Kennametal

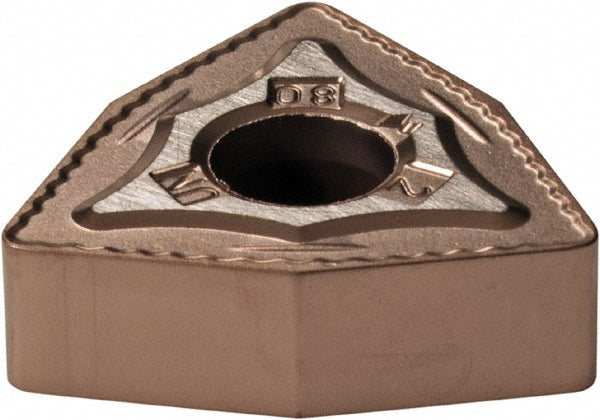

WNMG080408UN Carbide Insert, Grade KCK15B, TiCN - Kennametal 5387808
MFR# 5387808ISO/ANSI# WNMG432UNSeries KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387808 is a WNMG080408UN carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerUN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberWNMG432UN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408UN
Length range0.6500 - 0.7000
Manufacturers catalog number5387808
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.1500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
