Kennametal

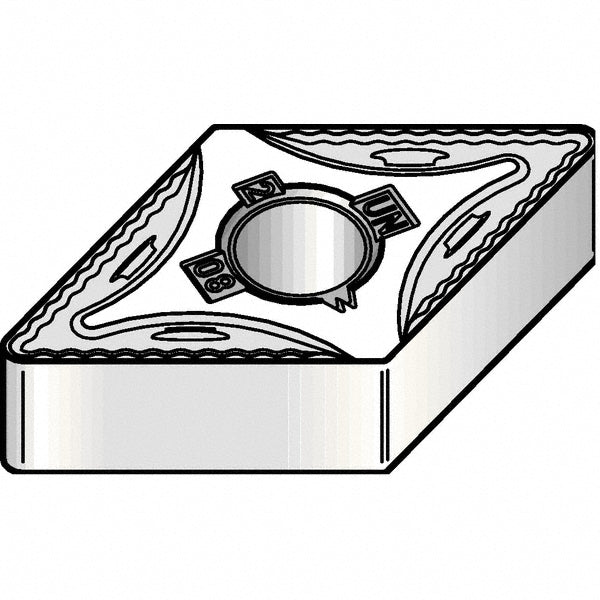

DNMG110408UN Carbide Insert, Grade KCK15B, TiCN - Kennametal 5387810
MFR# 5387810ISO/ANSI# DNMG110408Series KENLOC
$22.71List $27.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387810 is a DNMG110408UN carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMG332
Ansi size code332
Chip breakerUN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332UN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408UN
Iso insert codeDNMG110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number5387810
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.1500
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
