Kennametal

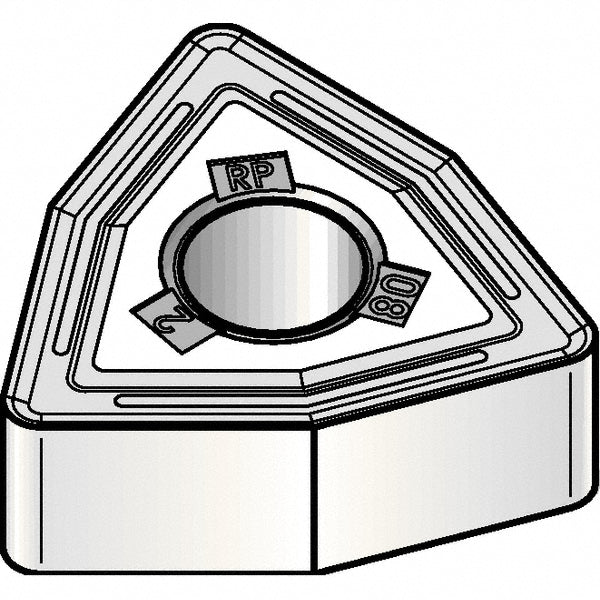

WNMG080412RP Carbide Insert, Grade KCP10B, TiCN - Kennametal 5387919
MFR# 5387919ISO/ANSI# WNMG080412Series KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387919 is a WNMG080412RP carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeWNMG433
Ansi size code433
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle80
Industry standard numberWNMG433RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412RP
Iso insert codeWNMG080412
Iso size code080412
Length range0.6500 - 0.7000
Manufacturers catalog number5387919
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2500
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
