Kennametal

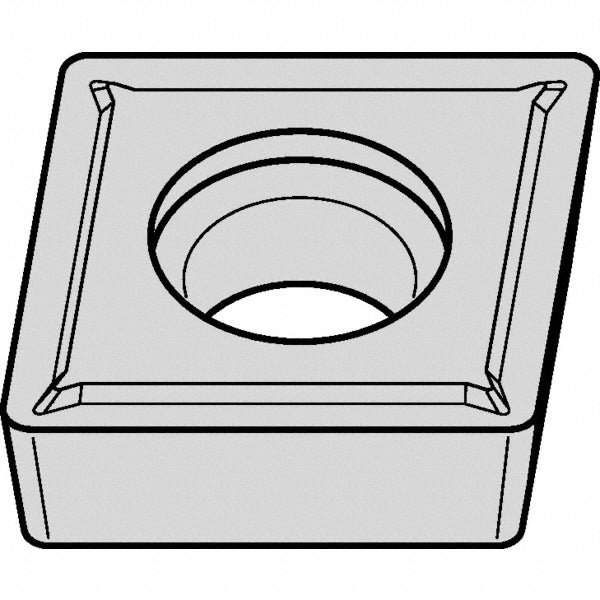

CCMT32.52 Carbide Insert, Grade KCP10B, TiCN - Kennametal 5388032
MFR# 5388032ISO/ANSI# CCMT3252LFSeries Screw-On
$29.73List $36.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5388032 is a CCMT32.52 carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle80degree
Industry standard numberCCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond 80
Insert size code3252
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.52
Length range0.3000 - 0.4000
Manufacturers catalog number5388032
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.0900
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
