Kennametal

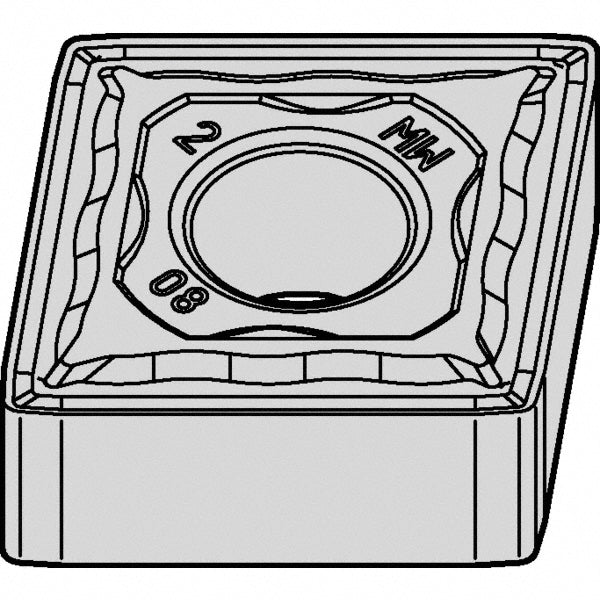

CNMG120408MW Carbide Insert, Grade KCP10B, TiCN - Kennametal 5388037
MFR# 5388037ISO/ANSI# CNMG432MWSeries KENLOC
$25.57List $31.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5388037 is a CNMG120408MW carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerMW
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80degree
Industry standard numberCNMG432MW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408MW
Length range0.5000 - 0.6000
Manufacturers catalog number5388037
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeYes
