Kennametal
Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5397501
MFR# 5397501Series KSEM
$238.96List $282.72
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description

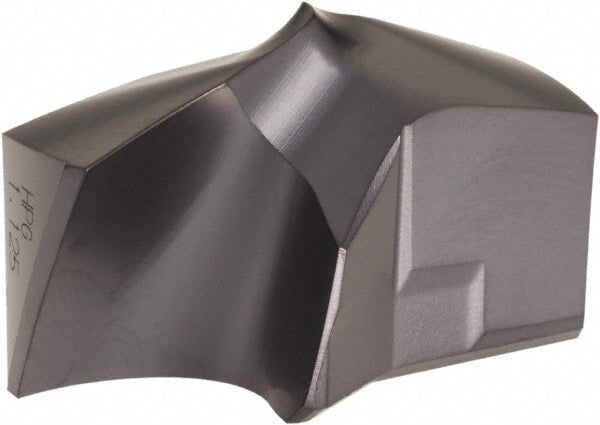

The Kennametal 5397501 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in1-1/8
DrillingStackedPlates
Drill point angle140
Flute length (mm)14.00
Flute typeHelical
Functional length0.5625
Height in9/16
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size7
Iso numberKSEM1125HPG
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5625
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
