Kennametal

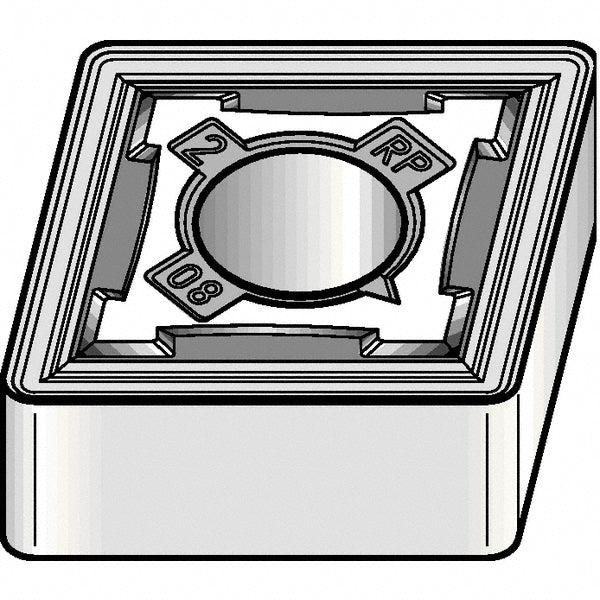

CNMG120412RP Carbide Insert, Grade KCP25B, TiCN - Kennametal 5413175
MFR# 5413175ISO/ANSI# CNMG433RPSeries KENLOC
$20.81List $25.41
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5413175 is a CNMG120412RP carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNMG433RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412RP
Length range0.5000 - 0.6000
Manufacturers catalog number5413175
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
