Kennametal

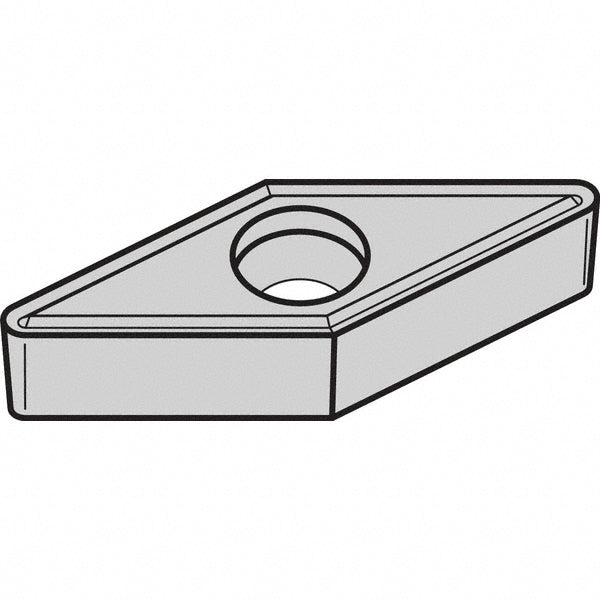

VBMT110304LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5413291
MFR# 5413291ISO/ANSI# VBMT221LFSeries Screw-On
$28.56List $34.85
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5413291 is a VBMT110304LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle35degree
Industry standard numberVBMT221LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeDiamond 35
Insert size code221
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110304LF
Length range0.7000 - 10.0000
Manufacturers catalog number5413291
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0900
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
