Kennametal

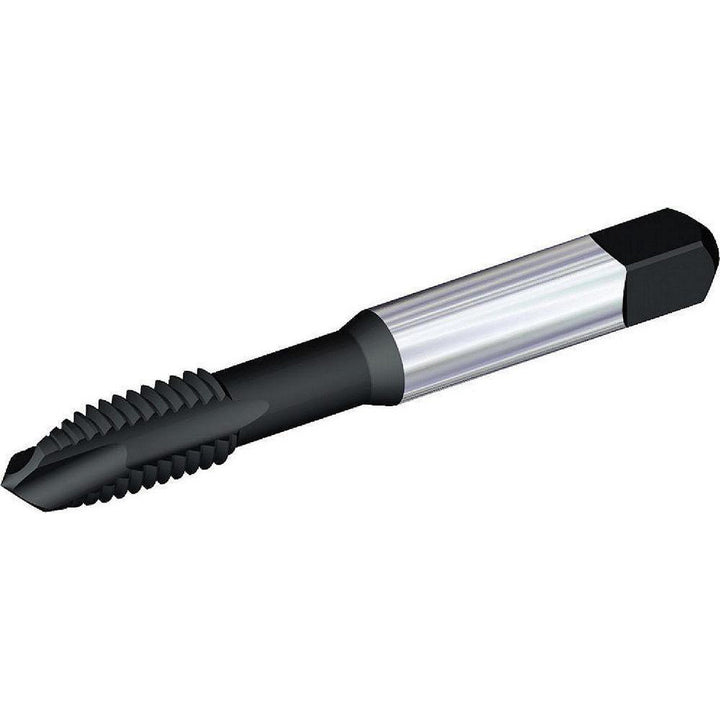

5/16-24 UNF HSS-E Spiral Point Tap, TiCN - Kennametal 5416890
MFR# 5416890Series T820
$39.30List $50.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiCN
Description
The Kennametal 5416890 is a 5/16-24 UNF HSS-E Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeKSP32
Measurement typeFractional Inch
Neck length in29/64
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size (mm)5.99
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in11/16
Thread limitH3
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
