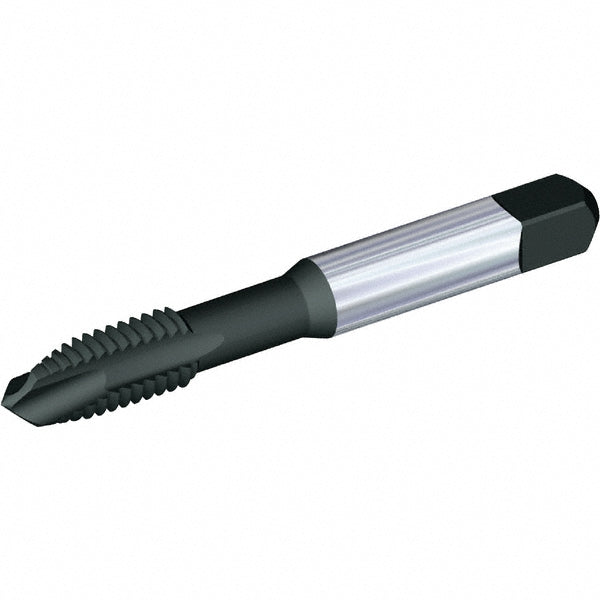

3/4-10 UNC HSS-E Spiral Point Tap, Oxide - Kennametal 5416954
MFR# 5416954Series T820
$145.84List $187.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingOxide
Description
The Kennametal 5416954 is a 3/4-10 UNC HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeFractional Inch
Neck length in55/64
Number of flutes3
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square size (mm)11.15
StyleSpiral Point
Threads per inch10
Thread directionRight Hand
Thread length in1-7/32
Thread limitH3
Thread pitch0.1
Thread size in3/4-10
Thread standardUNC
