Kennametal

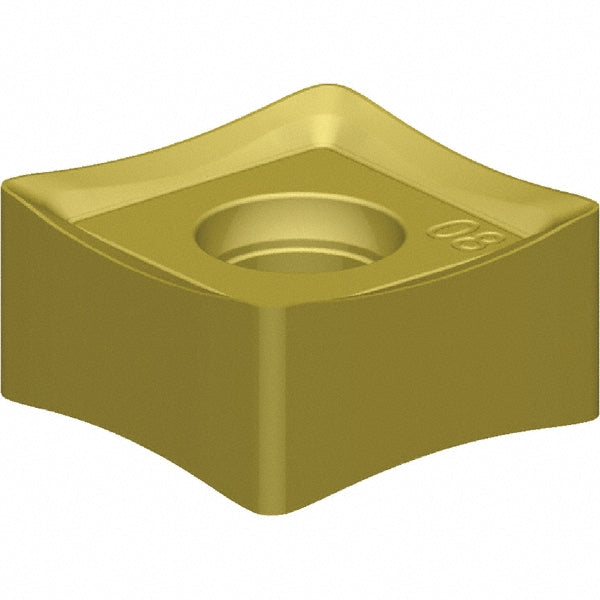

SNHJ10T308ENLD Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 5418808
MFR# 5418808ISO/ANSI# SNHJ10T308ENLDCat# SNHJ10T308ENLDSeries SNHJ
$28.26List $34.50
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5418808 is a SNHJ10T308ENLD solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSNHJ31252ENLD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityKSSM
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree90
Inscribed circle0.3940
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size3
Insert size code31252
Insert styleSNHJ
Iso codeSNHJ10T308ENLD
Length0.3940
Length range0.3200 to 0.4000
Manufacturers catalog numberSNHJ10T308ENLD
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1570
Thickness range0.1500 to 0.1750
Width0.3940
