Kennametal

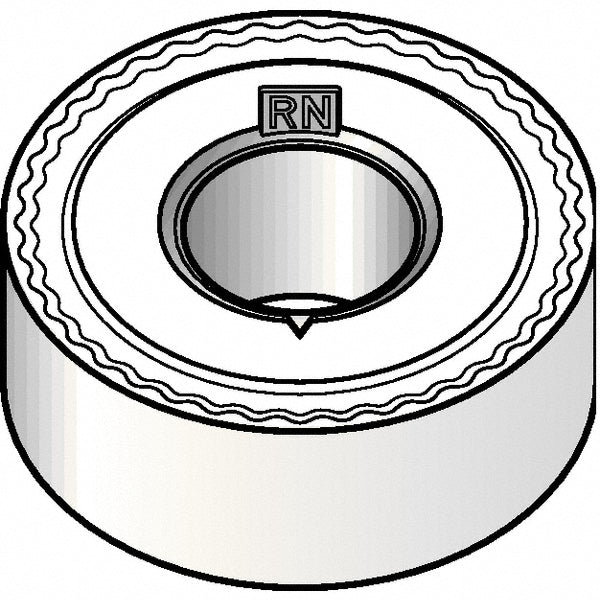

RNMG090300RN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5425596
MFR# 5425596ISO/ANSI# RNMG090300Series KENLOC
$19.46List $23.75
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5425596 is a RNMG090300RN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeRNMG32
Ansi size code32
Chip breakerRN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/16
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle360
Industry standard numberRNMG32RN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/8
Insert materialCarbide
Insert shapeR - Round
Insert size code32
Insert styleRNMG
Insert thickness in1/8
Iso codeRNMG090300RN
Iso insert codeRNMG090300
Iso size code090300
Length range0.3000 - 0.4000
Manufacturers catalog number5425596
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2500
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
