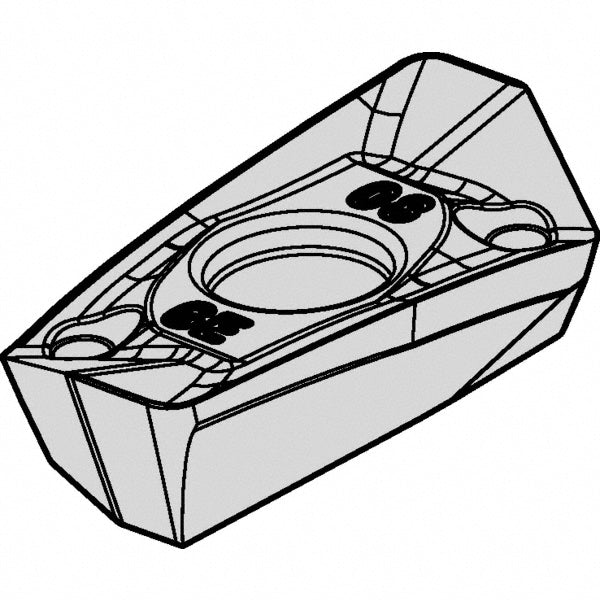

EDPT140408PDERHD2 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 5477295
MFR# 5477295ISO/ANSI# EDPT140408PDERHD2Cat# EDPT140408PDERHD2Series EDPT
$20.97List $25.60
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5477295 is a EDPT140408PDERHD2 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerHD2
Coating finishTiN
Coating processPVD
Corner radius in5/16
Hole diameter0.1339
Included angle degree70
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDERHD2
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDERHD2
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Thickness0.1770
Width in21/64
