Kennametal

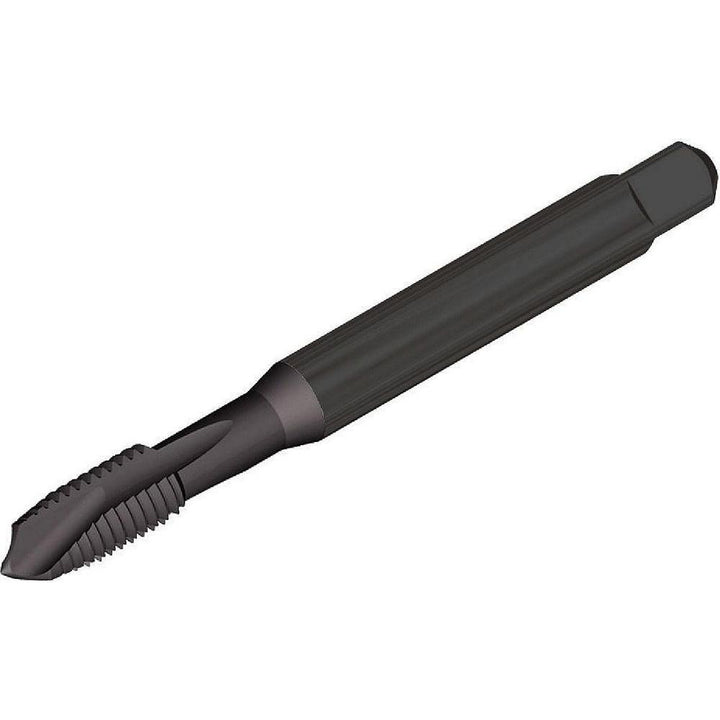

1/4-28 UNF HSS-E Spiral Point Tap, Oxide - Kennametal 5479701
MFR# 5479701Series T820
$46.97List $60.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingOxide
Description
The Kennametal 5479701 is a 1/4-28 UNF HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeDecimal Inch
Neck length in19/32
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2756
Square size (mm)5.50
StyleSpiral Point
Threads per inch28
Thread directionRight Hand
Thread length in19/32
Thread pitch0.0357
Thread size in1/4-28
Thread standardUNF
