Kennametal

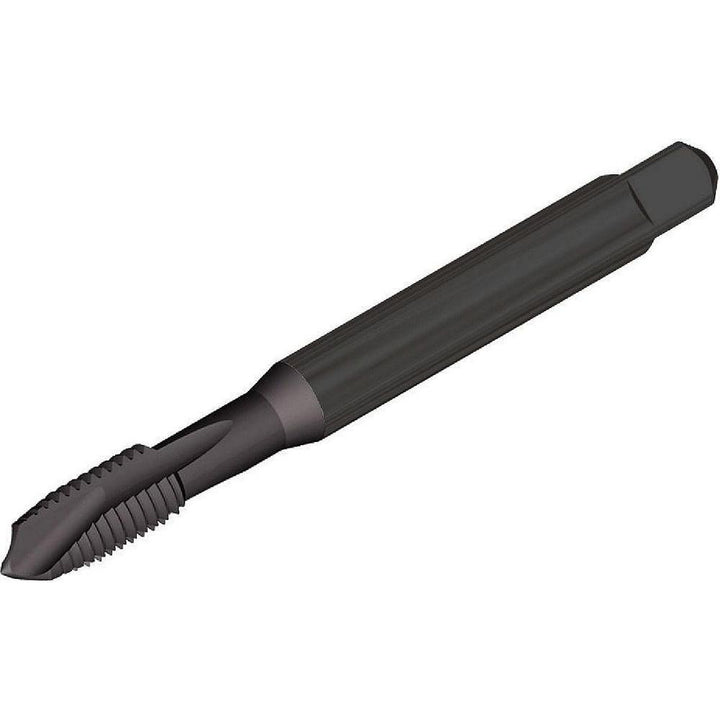

5/16-24 UNF HSS-E Spiral Point Tap, Oxide - Kennametal 5479704
MFR# 5479704Series T820
$57.74List $74.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingOxide
Description
The Kennametal 5479704 is a 5/16-24 UNF HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeDecimal Inch
Neck length0.7900
Number of flutes3
Overall length3.5400
OversizeNo
Shank diameter0.3150
Square size (mm)6.20
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in19/32
Thread pitch0.0417
Thread size in5/16-24
Thread standardUNF
