Kennametal

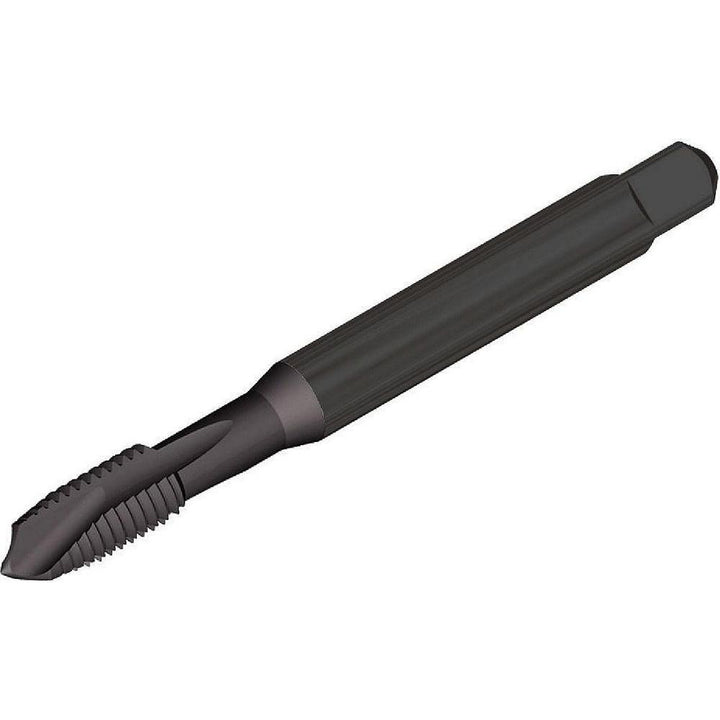

3/8-24 UNF HSS-E Spiral Point Tap, Oxide - Kennametal 5479707
MFR# 5479707Series T820
$49.49List $63.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingOxide
Description
The Kennametal 5479707 is a 3/8-24 UNF HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeFractional Inch
Neck length0.7900
Number of flutes3
Overall length in3-15/16
OversizeNo
Shank diameter0.3937
Square size (mm)8.00
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in3/4
Thread pitch0.0417
Thread size in3/8-24
Thread standardUNF
